  4. CLASS150 - 300 - 600LBS Bolted Bonnet :
  • CLASS150 - 300 - 600LBS Bolted Bonnet : Full Port (RF, RTJ, BW Ends)
  • CLASS150 - 300 - 600LBS Bolted Bonnet : Full Port (RF, RTJ, BW Ends)
  • CLASS150 - 300 - 600LBS Bolted Bonnet : Full Port (RF, RTJ, BW Ends)
  • CLASS150 - 300 - 600LBS Bolted Bonnet : Full Port (RF, RTJ, BW Ends)
CLASS150 - 300 - 600LBS Bolted Bonnet : Full Port (RF, RTJ, BW Ends)CLASS150 - 300 - 600LBS Bolted Bonnet : Full Port (RF, RTJ, BW Ends)CLASS150 - 300 - 600LBS Bolted Bonnet : Full Port (RF, RTJ, BW Ends)CLASS150 - 300 - 600LBS Bolted Bonnet : Full Port (RF, RTJ, BW Ends)

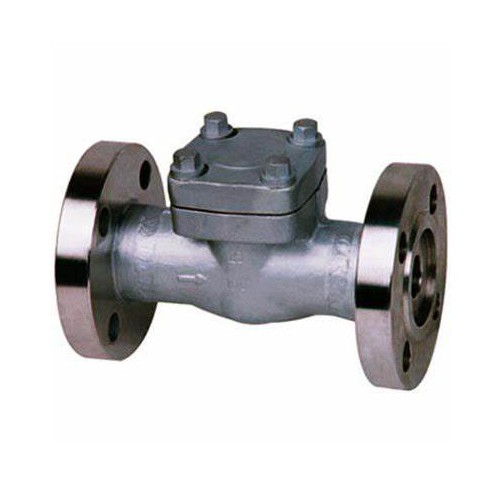

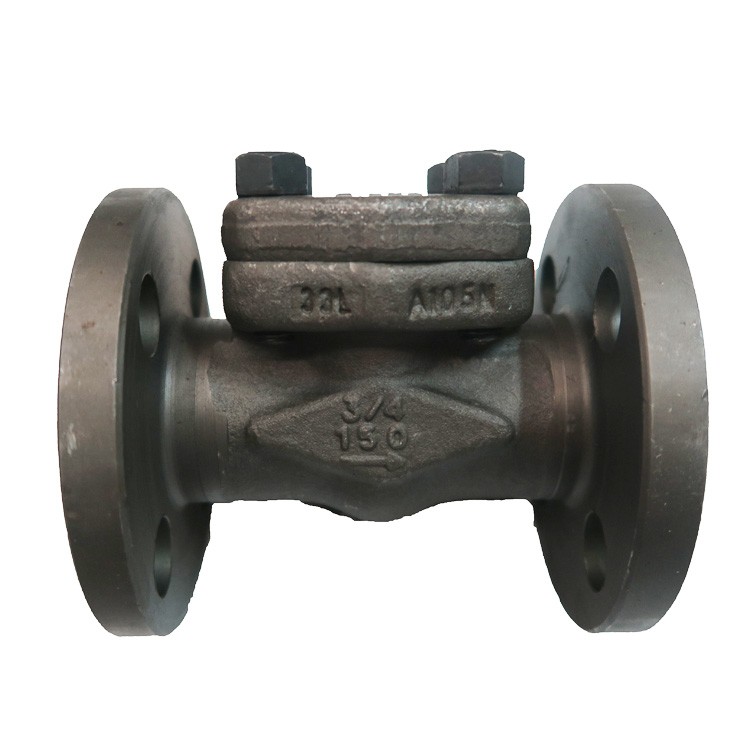

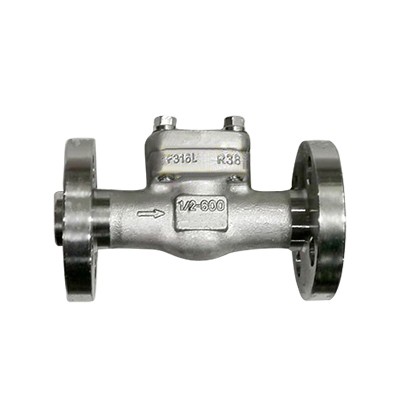

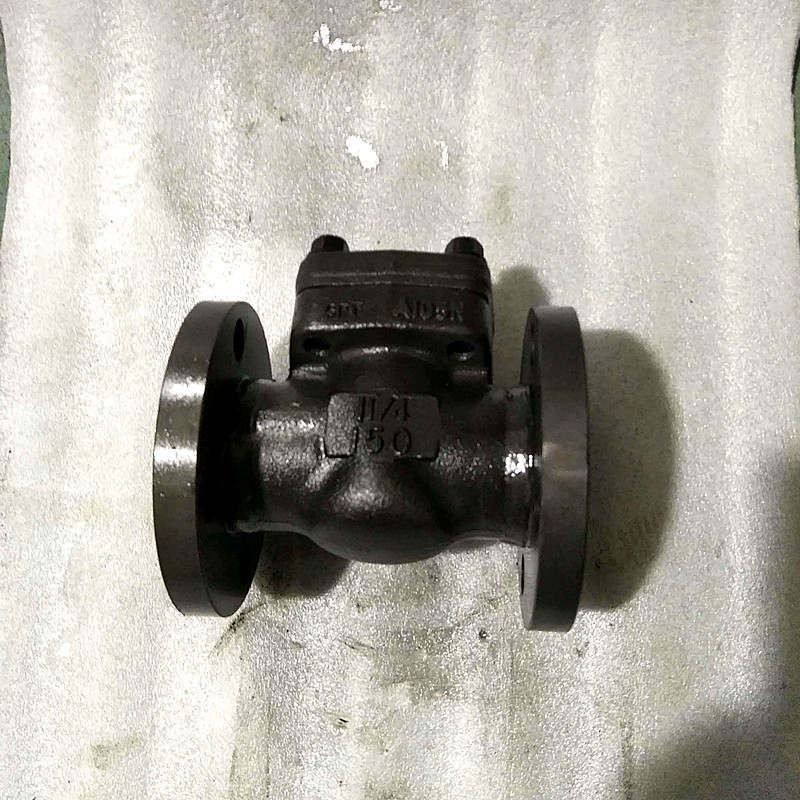

CLASS150 - 300 - 600LBS Bolted Bonnet : Full Port (RF, RTJ, BW Ends)

  • Product Item:H61Y
  • Design & Manufacture: BS5352
  • Constructions: Bolted Bonnet
  • Pressure Ratings: ANSI 150LBS, 300LBS, 600LBS
  • Materials: (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy
  • Flanged Forged Check Valve , Forged Check Valve A105 Check Valve , Sw Check Valve , Check Valve
    Inquiry Send Email

    Description

    Forged Check Valve, Integral Flange, Welded Flange, RF, RTJ, BW ends, Ansi Class 150Lbs, 300Lbs, 600Lbs, Bolted Bonnet Forged Steel Check Valves, Carbon Steel, Stainless Steel, A105, LF2, F5, F11, F22, F304, F316, F51, F53, Full Bore/Port, Piston, Lifting, Swing Type Forged Check Valve Supplier, Exporter.


    CLASS150 - 300 - 600LBS Bolted Bonnet : Full Port (RF, RTJ, BW Ends)

    1. Design & Manufacture: BS5352
    2. Constructions: Bolted Bonnet
    3. Bore type: Full Bore /Full Port
    4. Size Range: 1/2in to 2in
    5. Pressure Ratings: ANSI 150LBS, 300LBS, 600LBS
    6. End Connections: Flanged, Butt Weld.
    7. Materials Available in: A105, LF2, F5, F11, F22, F304, F316, F51, F53 or Equivalent
    8. Various Trim Materials are Available to Suit Different Service Conditions, Such As: 13Cr, Half Stellite, Full Stellite
    9. NACE MR 0175

    10.Test and Inspection: API598


    Flanged End Check Valve 150Lb~600Lb

    Standard Material Specifications

    NO. Part Name CS to ASTM AS to ASTM SS to ASTM
    Type A105 Type F22 Type F304(L) Type F316(L)
    1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
    2 Nameplate SS
    3 Piston Disc A276 420 A276 304 A276 304(L) A276 316(L)
    4 Bonnet A105 A182 F22 A182 F304(L) A182 F316(L)
    5 Gasket Corrueated SS + graphite SS + PTFE
    6 Bolt A193 B7 A193 B16 A193 B8 A193 B8(M)
    Suitable Medium W.O.G.etc W.O.G.etc HNO3,CH3OOH etc
    Suitable Temperature -29 425 -29 550 -29 180

    Note: Other materials are available upon request.

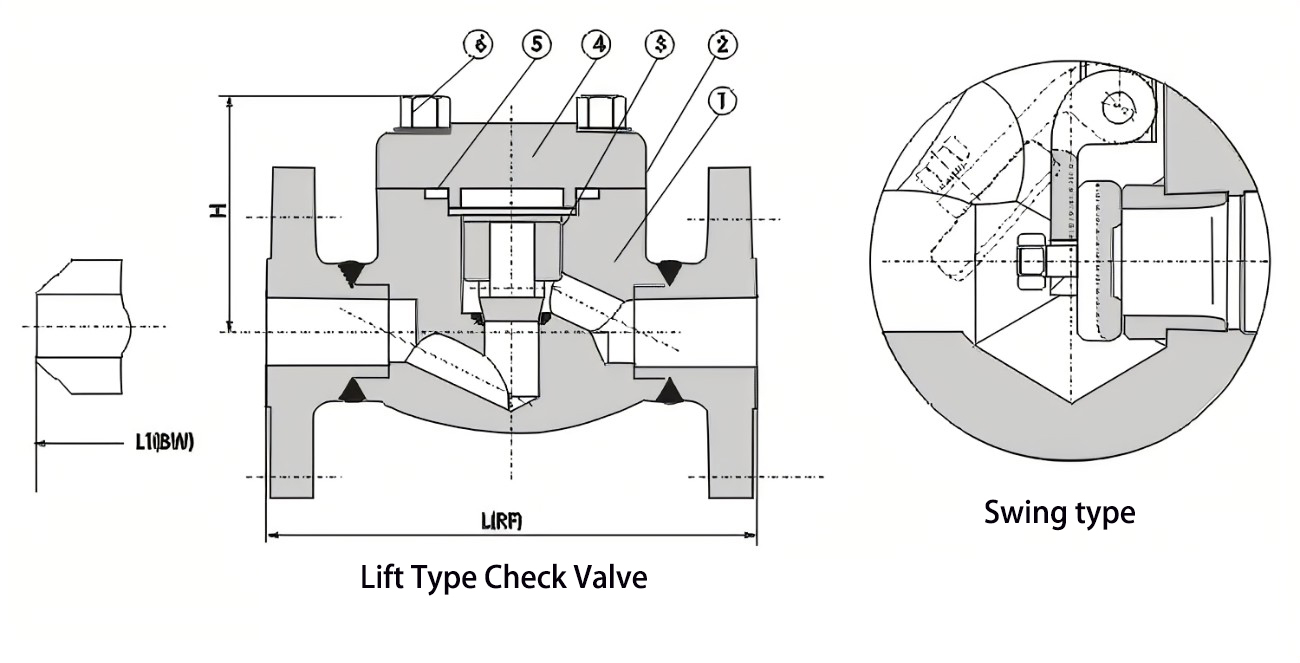

    Dimensions (mm) and Weights (Kg)
    NPS 1/2 3/4 1 1-1/4 1-1/2 2
    L(RF)L1(BW) 150 108 117 127 140 165 203
    300 152 178 203 216 229 267
    600 165 190 216 229 241 292
    H 150,300 61 61 79 95 103 118
    600 61 79 95 103 118 135
    Weights 150 RF 2.56 3.37 4.37 8.17 8.94 12.64
    BW 1.70 1.90 2.10 5.12 5.50 7.89
    300 RF 2.73 3.65 4.74 8.77 9.60 13.70
    BW 1.90 2.10 3.00 5.12 6.60 7.85
    600 RF 3.00 4.00 5.83 9.47 10.10 15.6
    BW 2.00 3.12 4.25 7.25 8.56 13.60
