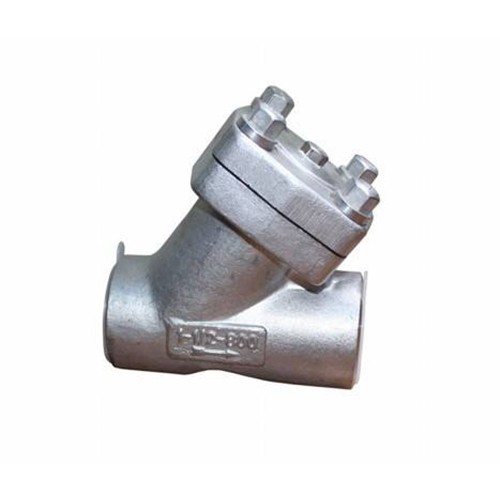

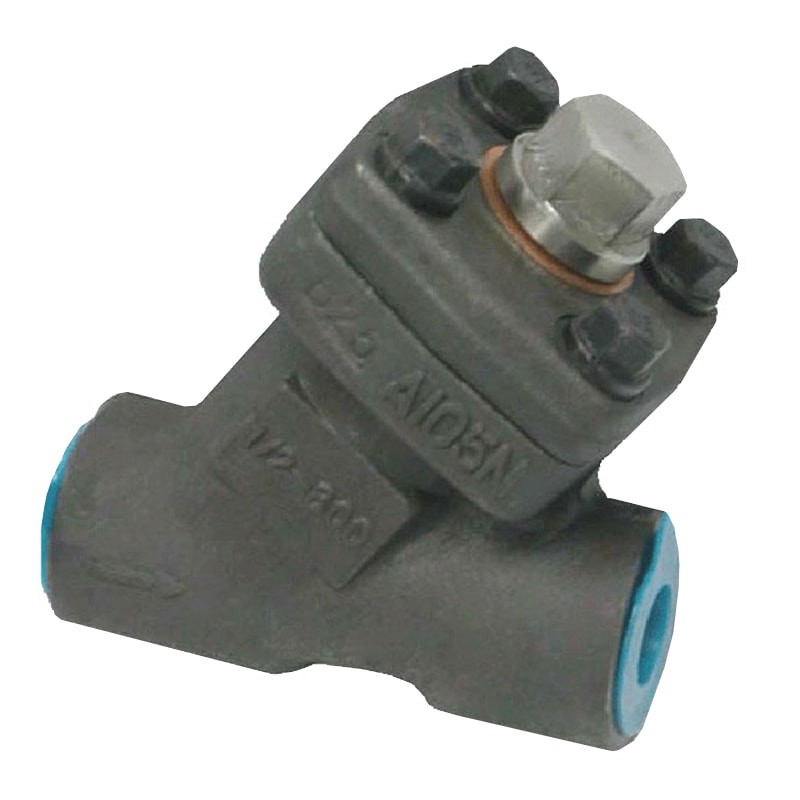

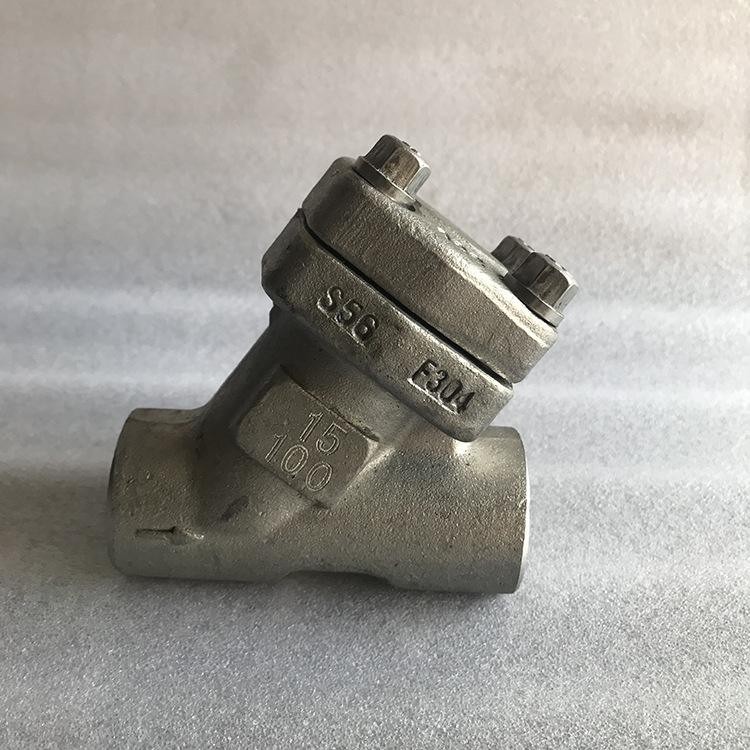

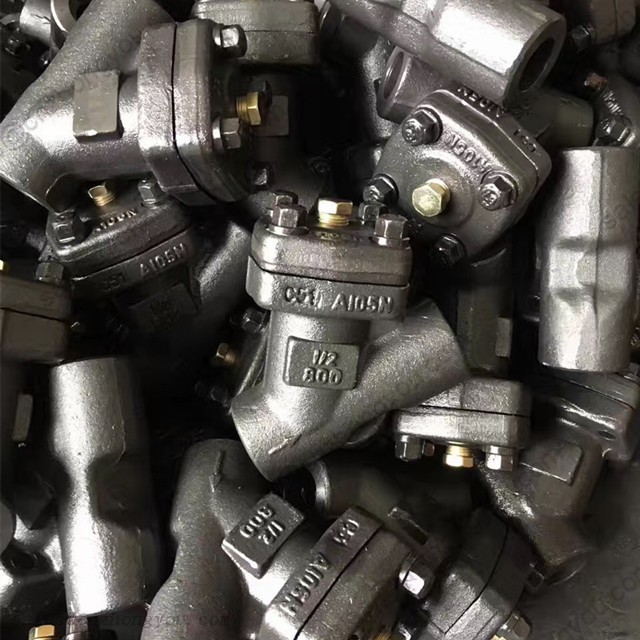

BS5352 Forged steel high y strainer socket weld class 800lb
Forged Y Type Strainer (Forged Y Strainer) is Designed For Bore Sizes 1/2inch to 2inch, Both For Socket Weld Ends and Threaded Ends; The Materials are In Forged Carbon Steel And Stainless Steel; Pressure Rating Range From 150LBS to 2500LBS
Application :
- Design: API602/ASME 16.34/BS 5352
- Pressure Test: API 598
- MSS SP25
- SW Socket welding ends according to ASME B16.11
- BW butt end by ASME B16.25
- NPT threaded connectors according to ASME B1.20.1
- Pressure rating
- CLASS 800
- CLASS 1500
Size range
- 1/4 "to 2.1/2"
Optional Materials
- Carbon Steel: A105, LF2,LF3
- Stainless Steel: F304, F304L, F316, F316L
- Duplex: F51, F55,
- Alloy: F1, F5, F5A, F9, F11, F22,F91,Alloy20#
Forged steel high pressure Y strainer standard material specifications

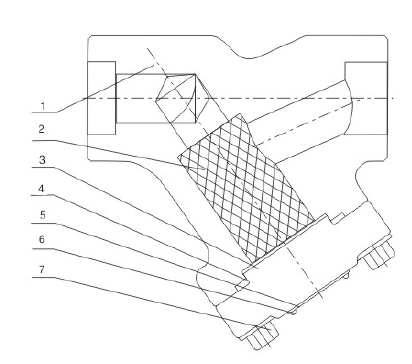

| NO. | Part Name | A105 | F11 | F304(L) | F316(L) |
| 1 | Body | A105 | A182 F11 | A182 F304(L) | A182 F316(L) |
| 2 | Screen | SS304 | SS316 | ||
| 3 | Bonnet | A105 | A182 F11 | A182 F304(L) | A182 F316(L) |
| 4 | Gasket | SS + graphite | SS + PTFE | ||
| 5 | Nameplate | Aluminum | |||
| 6 | Rivet | Copper | |||
| 7 | Bonnet Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| Suitable Medium | W.O.G. etc | W.O.G. etc | HNO3 | ||
| Suitable Temperature | -29℃~425℃ | -29℃~550℃ | -29℃~180℃ | ||
Note:Other materials are available on request.
Forged steel high pressure gate valve dimensions (mm) and weights (kg) for class 150lb-800lb
| NPS | Reduced port | 3/8" | 1/2" | 3/4" | 1" | 1.1/4" | 1.1/2" | 2" | 2.1/2" | |
| Full port | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1.1/4" | 1.1/2" | 2" | ||
| L | 79 | 79 | 92 | 100 | 120 | 140 | 155 | 170 | ||
| H | 70 | 70 | 70 | 100 | 110 | 120 | 120 | 150 | ||
| Weight(kg) | Bolted bonnet | 2.2 | 2.2 | 2.1 | 4.2 | 8.9 | 8.7 | 10 | 18.6 | |
| Welded bonnet | 2.1 | 2.1 | 2 | 3.6 | 8 | 8.1 | 17.2 | 16 | ||
Forged steel high pressure y s dimensions (mm) and weights (kg) for class 900lb-1500lb
| NPS | Reduced port | 3/8" | 1/2" | 3/4" | 1" | 1.1/4" | 1.1/2" | 2" | |
| Full port | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1.1/4" | 1.1/2" | ||
| L | 100 | 100 | 100 | 140 | 140 | 150 | 170 | ||
| H | 70 | 70 | 100 | 110 | 120 | 120 | 150 | ||
| Weight(kg) | Bolted bonnet | 2.1 | 4.2 | 9 | 8.9 | 10 | 18.6 | 20 | |
| Welded bonnet | 2 | 3.5 | 8.2 | 8 | 12 | 16 | 18 | ||
