  • Forged Gate Valve 150LBS & 2500LBS (Flanged & Bw Ends)
  • Forged Gate Valve 150LBS & 2500LBS (Flanged & Bw Ends)
  • Forged Gate Valve 150LBS & 2500LBS (Flanged & Bw Ends)
  • Forged Gate Valve 150LBS & 2500LBS (Flanged & Bw Ends)
Forged Gate Valve 150LBS & 2500LBS (Flanged & Bw Ends)Forged Gate Valve 150LBS & 2500LBS (Flanged & Bw Ends)Forged Gate Valve 150LBS & 2500LBS (Flanged & Bw Ends)Forged Gate Valve 150LBS & 2500LBS (Flanged & Bw Ends)

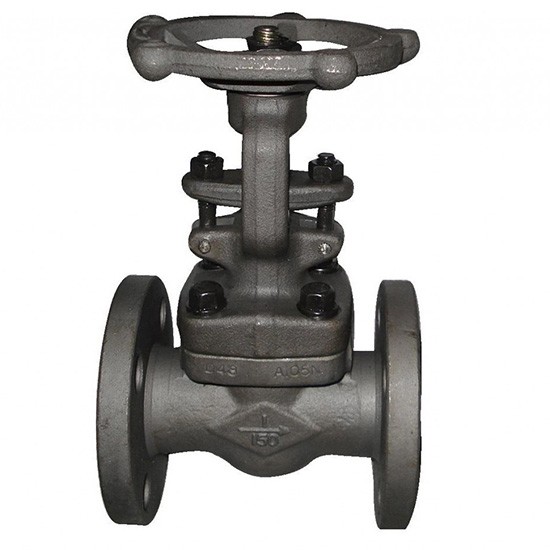

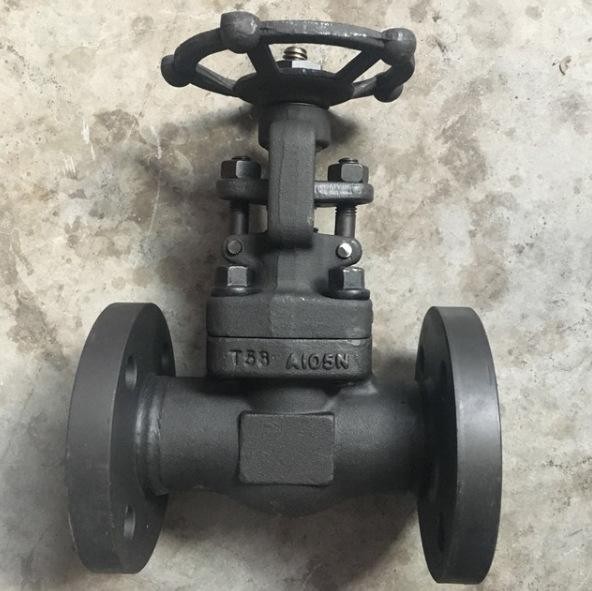

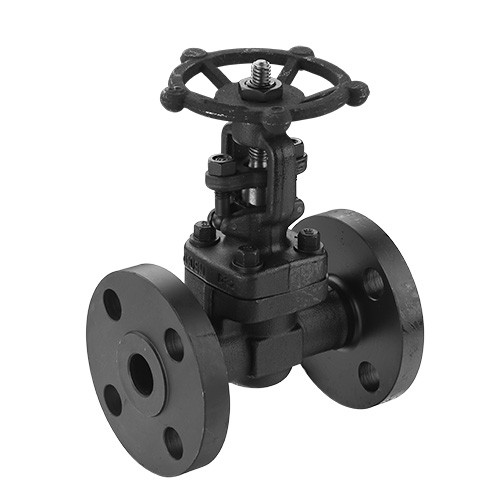

Forged Gate Valve 150LBS & 2500LBS (Flanged & Bw Ends)

  • Product Item:Z41Y
  • Design and Manufacrture: API602, ASME B16.34
  • Constructions: OS&Y, Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet;
  • End Connections: Flanged (RF, RJ), Butt weld (BW)
  • Materials Available in: A105, LF2, F5, F11, F22, F304, F316, F51 or Equivalent;
  • Forged Gate Valve , a105 Gate Valve 800lb , Buy Forged Steel Astm A105 800lb , Api 6d Standard Gate Valves , gate valve drawing
    Inquiry Send Email

    Description

    Flanged Forged Gate Valve CL150 To CL2500, API 602, Integral Flanged, Welded Flanged, BW Ends, Outside Screw And Yoke And Rising Stem Design, Bolted / Welded Bonnet, Pressure Seal Bonnet Forged Steel Solid Wedge Gate Valves, Ansi Class 150Lbs, 300Lbs, 600Lbs, 900Lbs, 1500Lbs, 2500Lbs, NPS 1/2 to NPS2 Carbon Steel, Stainless Steel, Duplex Steel Handwheel Samll Size Gate Valve Supplier and Exporter.

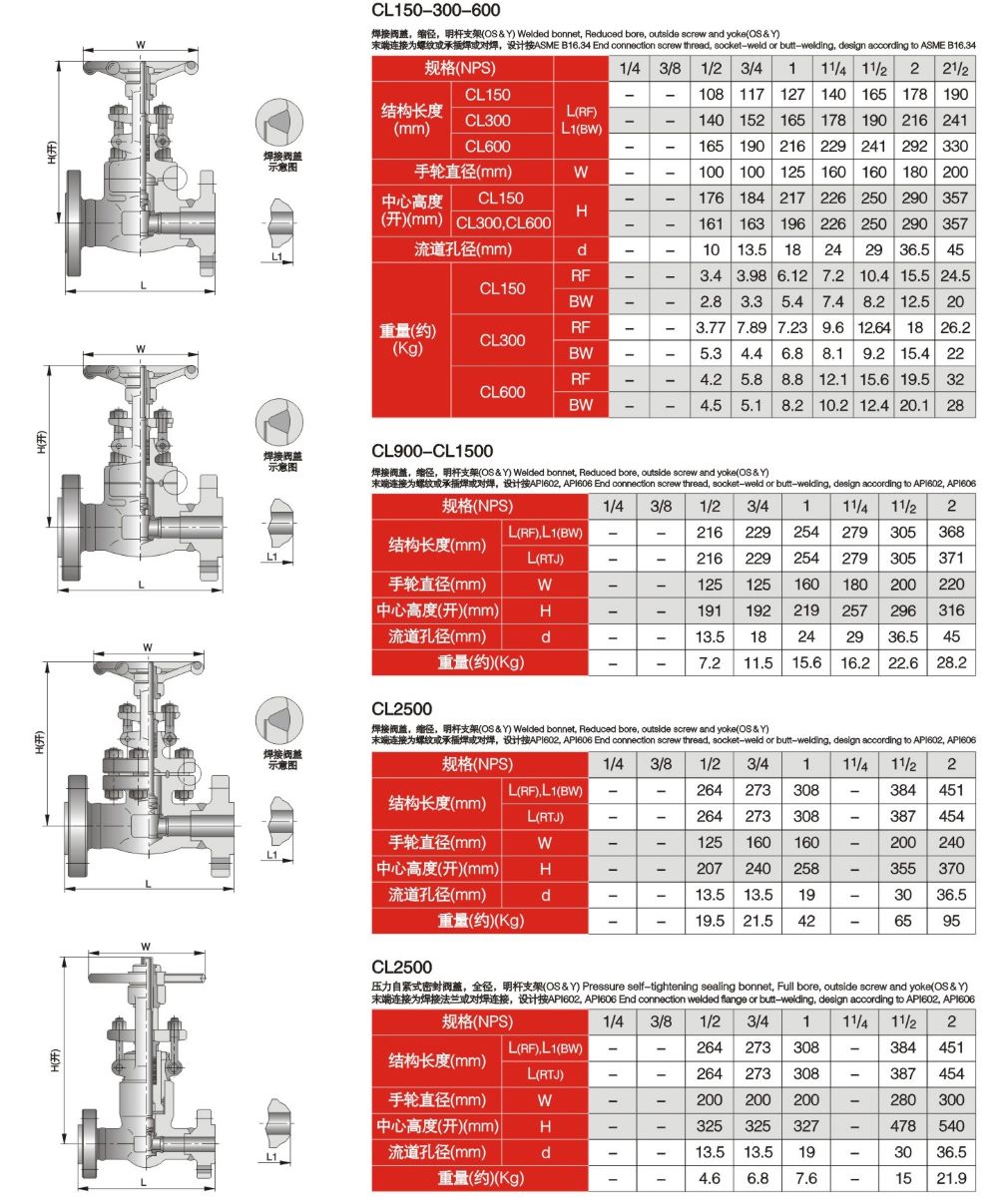

    Specifications For Forged Gate Valve 150LBS – 2500LBS (Flanged, Bw Ends)
    1. Design & Manufacture: API 602
    2. Constructions: OS&Y, Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet;
    3. Port type: Reduced Port
    4. Size Range: 1/2″ to 2″.
    5. Pressure Ratings: ANSI 150LB, 300LB, 600LB, 900LB, 1500LB & 2500LB
    6. End Connections: Flanged (RF, RJ), Butt weld (BW)
    7. Materials Available in: A105, LF2, F5, F11, F22, F304, F316, F51 or Equivalent;
    8. Various Trim Materials are Available to Suit Different Service Conditions
    9. NACE MR 0175 on Request
    10.Test and Inspection: API598
    11. Welded Flange or Integrated Flange are Available For Choice.
