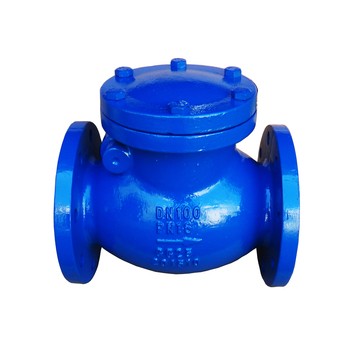

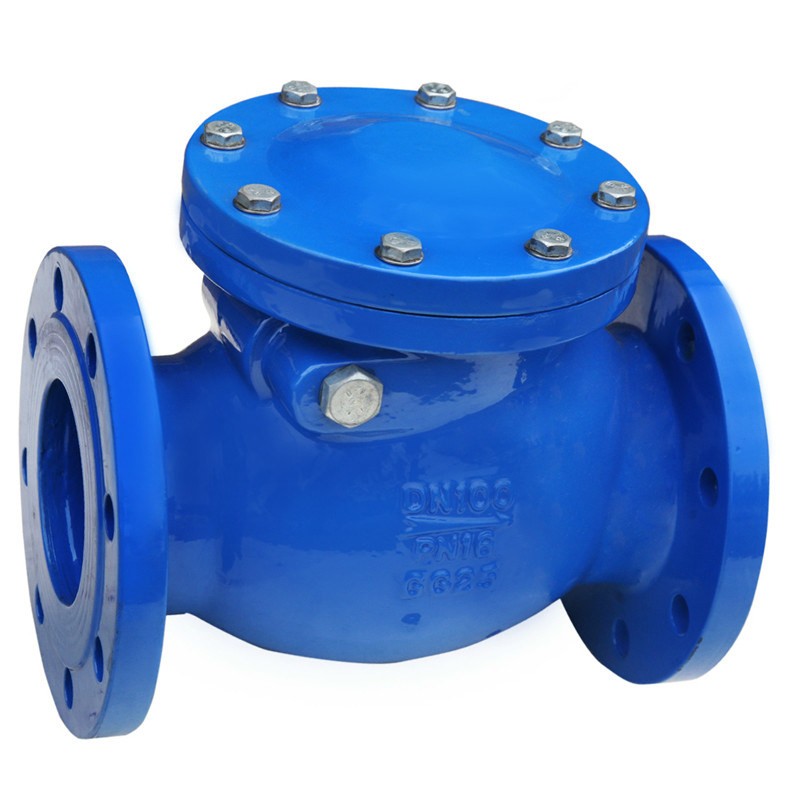

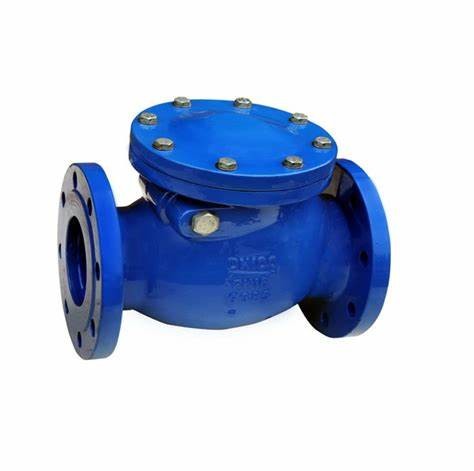

Cast Iron Swing Check Valve (ASME B16.10)

  • Product Item:H44H
  • Size Range: 2”-24”(DN50-DN600)
  • Confirm to BS5153 PN16
  • Flange Drilled Conforms to BS4504
  • Face to face Dimensions Conform to Series 2 of BS5153
  • Cast Iron Swing Check Valve , BS5153 Check Valve , Dutile Iron Swing Check Valve
    Inquiry Send Email

    Description

    Cast Iron Swing Check Valve (BS5153)

    Features:

    1. The valve flow is streamlined,low resistance.
    2. The open-close part is control by medium itself to prevent backflow.
    3. Seal the pair of pairs of advanced and reasonable, disc, valve seat sealing surface with iron-based alloy or Si Tai Li cobalt-based carbide welding, wear, high temperature, corrosion resistance, anti-scratch ability, long service life.
    4. Products can be used in a variety of piping flange and flange standard and flange seal type, to meet a variety of engineering needs and user requirements.
    5. Valve body variety, gasket can be based on actual conditions or user requirements reasonable matching, can be applied to a variety of pressure, temperature and medium conditions.

    Standards:

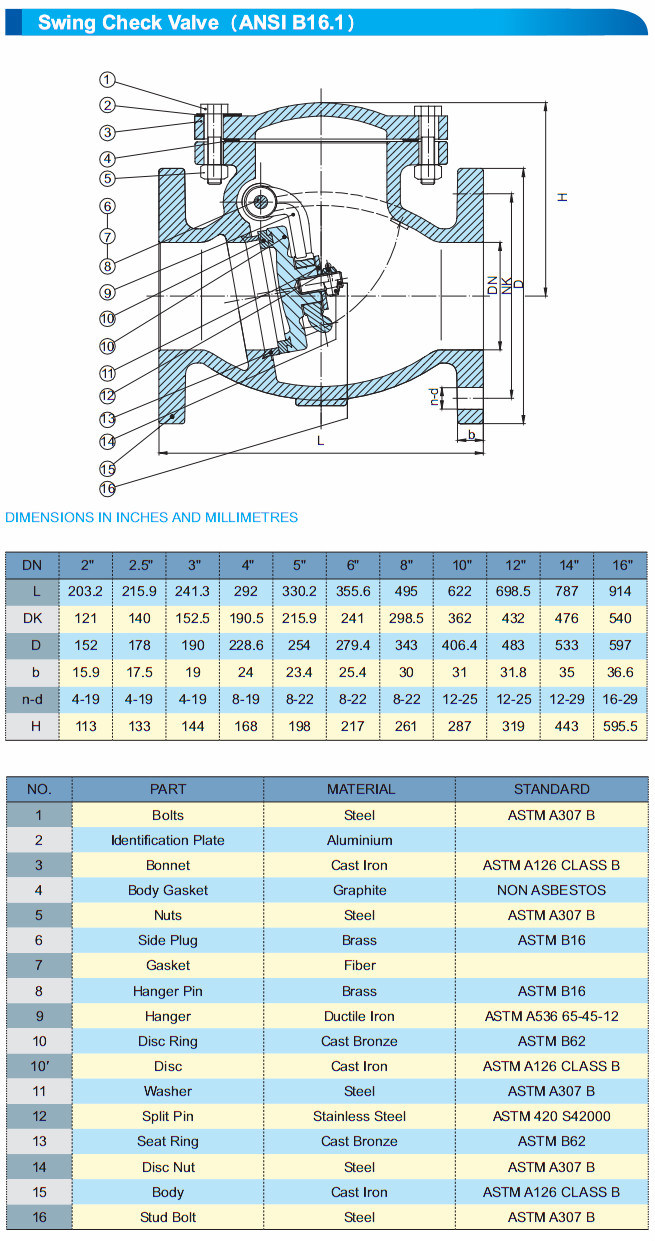

    • Confirm to BS5153 PN16Swing check valve (ANSI B16.1)
    • Conform to MSS SP-71
    • Flange Drilled to ANSI B16.1
    • Face to face dimension conform to ANSI B16.10
    • Working Pressure: 125 lbs
    • Suitalbe Media: Water, Oil, Gas Face to face Dimensions Conform to Series 2 of BS5153

    NO.

    PART

    MATERIAL

    STANDARD

    1

    Bolts

    steel

    BS970 73A

    2

    Identification Plate

    Aluminium


    3

    Bonnet

    Cast Iron

    BS1452 Cr.180

    4

    Body Gasket

    Graphite

    BS2494 Type W

    5

    Stem

    Brass

    BS2874 CZ12

    6

    Nuts

    Steel

    BS970 43A

    7

    Side Plug

    Brass

    BS2874 CZ12

    8

    Gasket

    Fiber


    9

    Hanger Pin

    Brass

    BS2874 CZ12

    10

    Hanger

    Ductile Iron

    BS2789 Gr.420-12

    11

    Disc

    Cast Iron

    BS1452 Cr.180

    12

    Disc Ring

    Cast Bronze

    BS1400 LG2

    13

    Washer

    steel

    BS970 43A

    14

    Split Pin

    Stainless Steel

    BS970 420S37

    15

    Body

    Cast Iron

    BS1452 Cr.180

    16

    Stud Bolt

    Steel

    BS970 43A
