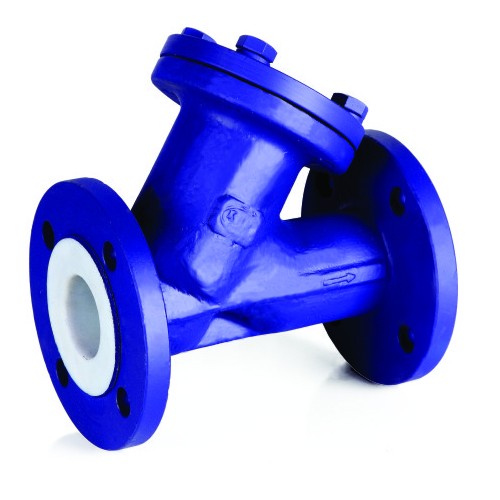

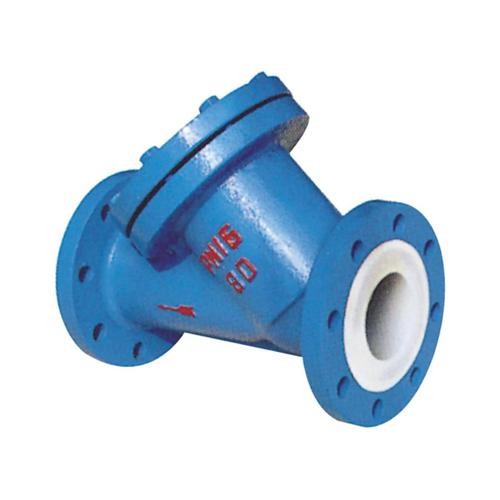

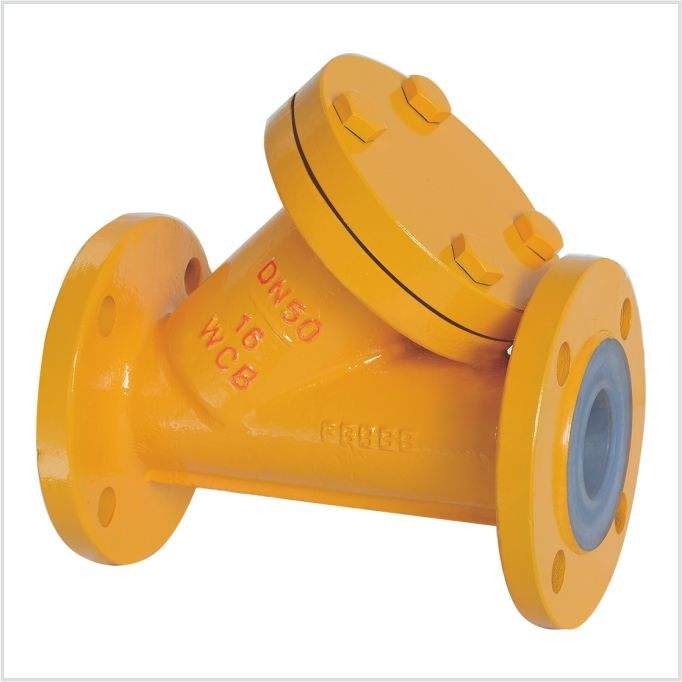

  • PFA FEP lined Y type strainer
  • PFA FEP lined Y type strainer
  • PFA FEP lined Y type strainer
PFA FEP lined Y type strainerPFA FEP lined Y type strainerPFA FEP lined Y type strainer

PFA FEP lined Y type strainer

  • Product Item:GL41F4
  • Design and Manufacture Standard: ASME B16.34, HG/T 3704
  • Body Material: WCB, ASTM A395, CF8, CF8M
  • Lining Material: PFA, FEP, PTFE
  • Nominal Diameter: 1/2"-14"(DN15~DN350)
  • PFA FEP lined Y type strainer , PTFE lining Y type strainer , PFA lining Y type strainer , PTFE lining Y strainer
    Inquiry Send Email

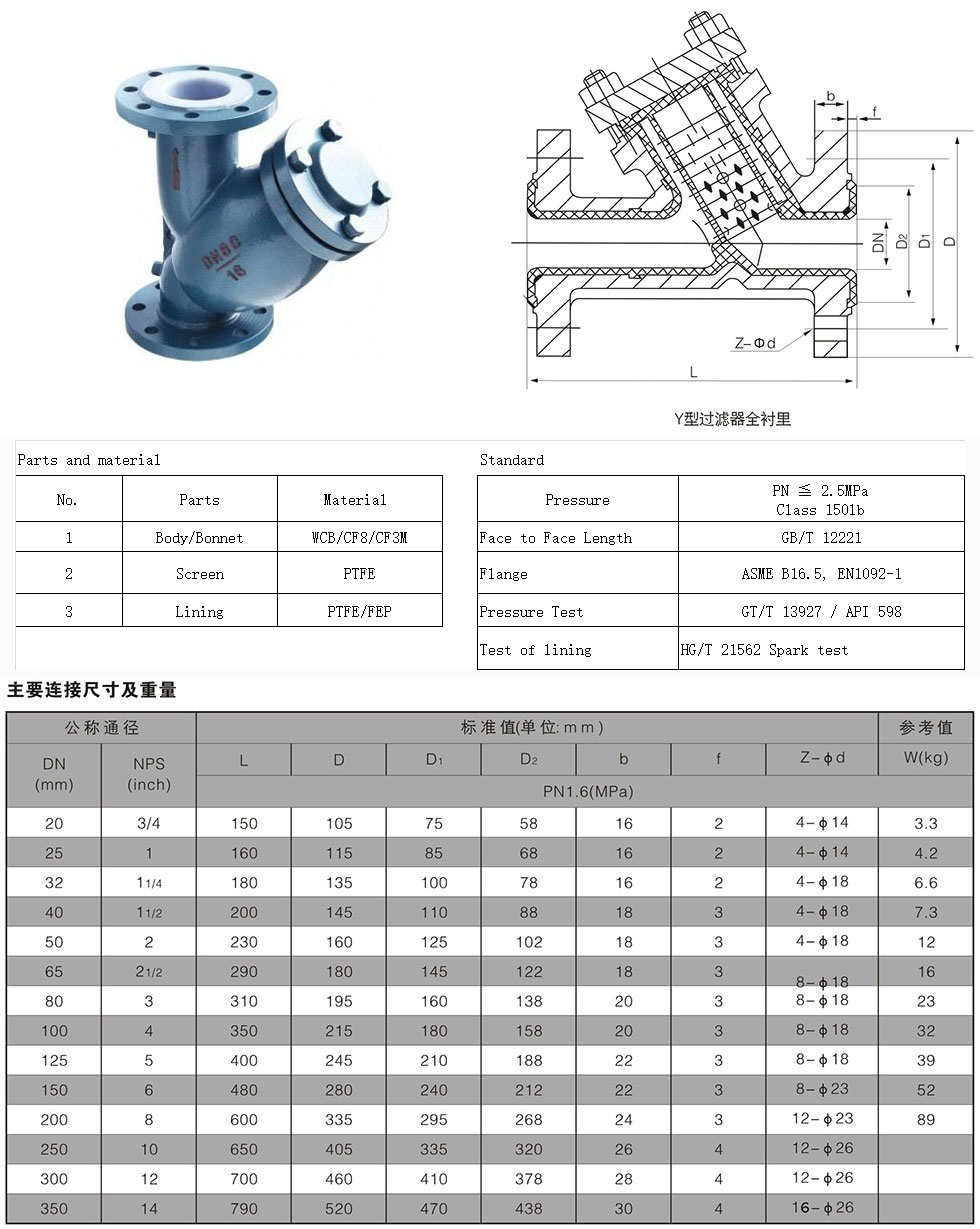

    Description

    PFA FEP lined Y Type Strainer

    • Strainer body: ASTM A 216 Grade WCB
    • Flange: GB/T 12221, ANSI B16.5 ASA150 # for drilled holes
    • Standard : Two fixed flanges
    • Lining : FEP in compliance with ASTM D 2116
    • PFA in compliance with ASTM D 3307, natural
    • Filter: Pure PTFE in compliance with ASTM D 1457, white in colour
    • Lining thickness: 3 to 5 mm, exceeds the relevant ASTM F-1545 standard specs.
    • Operating temperature: FEP -29 to 200 deg. C, PFA -29 to 260 deg. C
    • Operating pressure: Vaccume to 6 kg / cm. sq, Hydrostatic pressure test 10 kg / cm. sq
    • Air leak test : 3 kg / cm. sq.
    • Spark test: 10 KV
