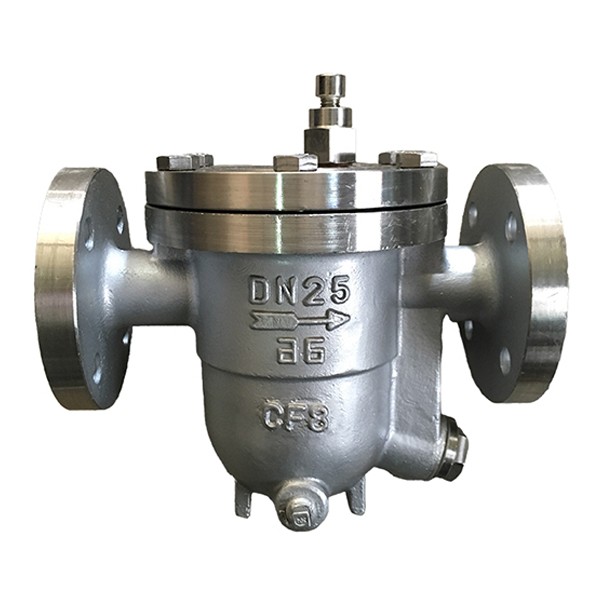

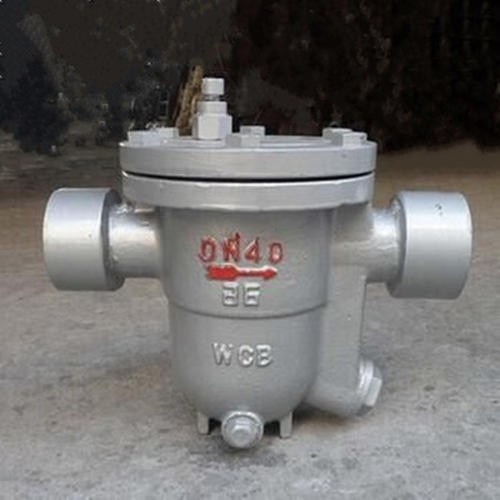

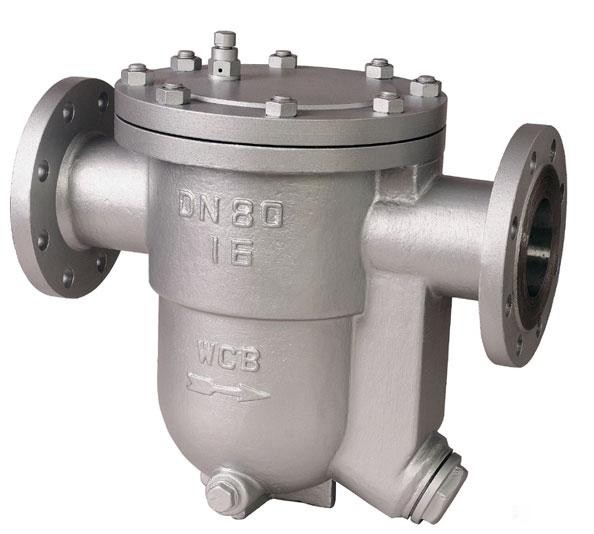

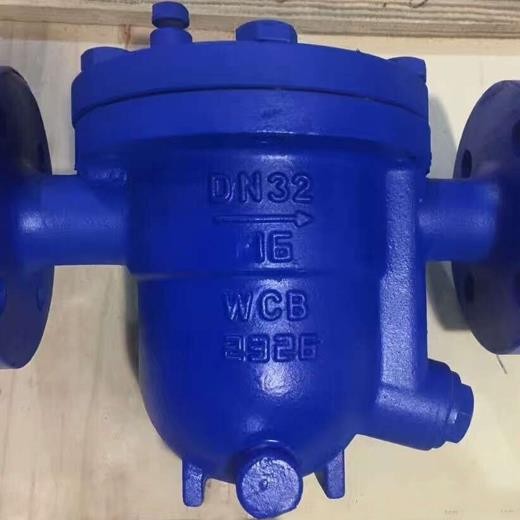

Free float ball type steam traps

  • Product Item:CS41H
  • Body Material: Wcb,Wc1,Wc6,Wc9,C5,CF8,CF8m,CF3,CF3m
  • Pressure Class150LB~Class600LB,PN16~PN40
  • Standard DIN GB ISO JIS ANSI
  • Flanged End ASME B16.5
  • Flangedthreadedsocket Welded Free Ball Float Type Steam Trap - Buy Free Ball Float Steam Trap , Steam Trap , Stainless Steel Steam Trap
    Inquiry Send Email

    Description

    Free float ball type steam traps

    Features

    1) Material: WCB, F304,F316
    2) Class: 150 - 300lbs , PN16-PN40
    3) Size: 1/2''-6"
    4) Standards: JB/T9093-99
    5) End flange: ANSI B16.5
    6) Free Float Steam Trap with built-in X-element type automatic air vent, for use on process equipment. Discharge 600-700kg per hour
    ISO9001, API 6D, and CE

    Working Principle:

    By the action of buoyancy, the position of floating ball changes with the water level of condensation water and adjust the opening of valve seat automatically, continue to discharge condensation water, when the condensation water stops, the floating ball fall onto bottom by gravity, then close opening of drain valve. The opening of drain valve is below the water lever, and so the water is separated from steam automatically, and form water seal without steam leakage.

     Structure Characteristics:


    • 1. It can drain water continuously and perform in a stable way with large capacity and less steam  loss.
    • 2. It can saturate the water continuously, which makes less stock of condensation water in the equipment adn is quick in heating and     stable in heating temperature.
    • 3. It has automatic cold air vent device without air lock situation. it works in balanced way without noisy.

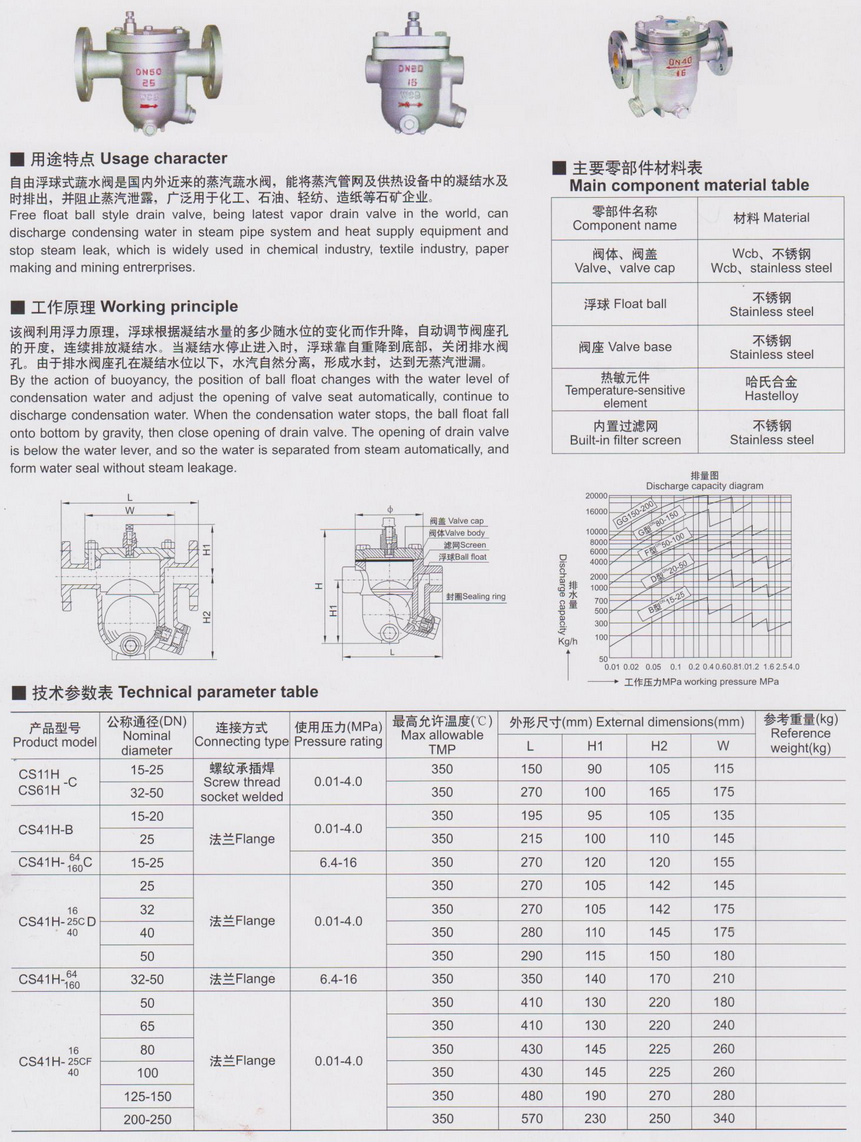

    • Performance Parameter/ Material List of Main Part:


    Mini Working Pressure

    0.01Mpa

    Max allowable temperature for cast steel

    425℃

    Mini degree of super cooling

    0

    Max allowable temperature for stainless steel

    525℃

    Leakage rate with loading

    0

    Working Medium

    Saturated vapor, condensed water

    Maxi allowable rate of back pressure

    80%

    Exhaust plant

    Stainless steel / alloy

    Valve body, cap

    WCB / 304

    Floating ball

    Stainless steel

    Valve seat

    2Cr13 / 304

    Filter

    Stainless steel
