  4. ZJHM Pneumatic Cage Control Valve
  • ZJHM Pneumatic Cage Control Valve
  • ZJHM Pneumatic Cage Control Valve
  • ZJHM Pneumatic Cage Control Valve
  • ZJHM Pneumatic Cage Control Valve
ZJHM Pneumatic Cage Control ValveZJHM Pneumatic Cage Control ValveZJHM Pneumatic Cage Control ValveZJHM Pneumatic Cage Control Valve

ZJHM Pneumatic Cage Control Valve

  • Product Item:ZJHM
  • Design & manufacturing: GB/T 12221-2005
  • Flanged ends: GB/T 9113.1-2000, ANSI 16.5, JIS B2201
  • Face to face: GB/T 12221-2005
  • Materials: cast iron (GG25), carbon steel (WCB), stainless steel 304(CF8), stainless steel 316(CF8M)
  • ZJHM Pneumatic Cage Control Valve , Control Valve , Pneumatic Control Valve
    Inquiry Send Email

    Description

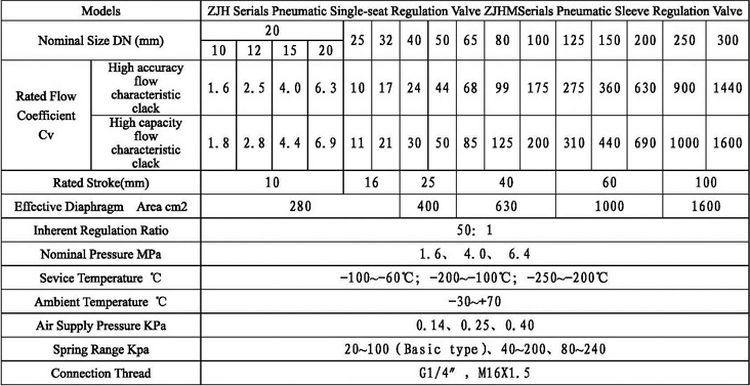

    —Technical Parameter Of Pneumatic Globe Valve—

    1. Pneumatic globe valve is of low center of gravity, high vibration resistance and easy for installation.

    2.They are widely used for automatic production control system in industrials including chemistry, petroleum, light industry, power station, metallurgy

    Nominal Size 20 25 32 40 50 65 80 100 125 150 200
    10 12 15 20
    Rated Flow Coefficient Cv High accuracy flow characteristic clack 1.6 2.5 4.0 6.3 10 17 24 44 68 99 175 275 360 630
    High capacity flow characteristic clack 1.8 2.8 4.4 6.9 11 21 30 50 85 125 200 310 440 690
    Rated Strock(mm) 10 16 25 40 60
    Effective Diaphragm Area (cm2) 280 400 630 1000
    Inherent Regualtion Ratio 50:1
    Nominal Pressure MPa 0.16 1.6 4.0 6.4 (ANSI125 150 300 600LB)(JIS10 16 20 30 40K)
    Sevice Temperature -20 to 200℃  -40 to 250℃  -40 to 450℃  -60 to 450℃
    Ambient Temperature -30 to 70℃
    Air Supply Pressure KPa 0.14, 0.25, 0.4
    Spring Range KPa 20 ~100(Basic type), 40~200, 80~240
    Connection Threaded G1/4”, M16X1.5

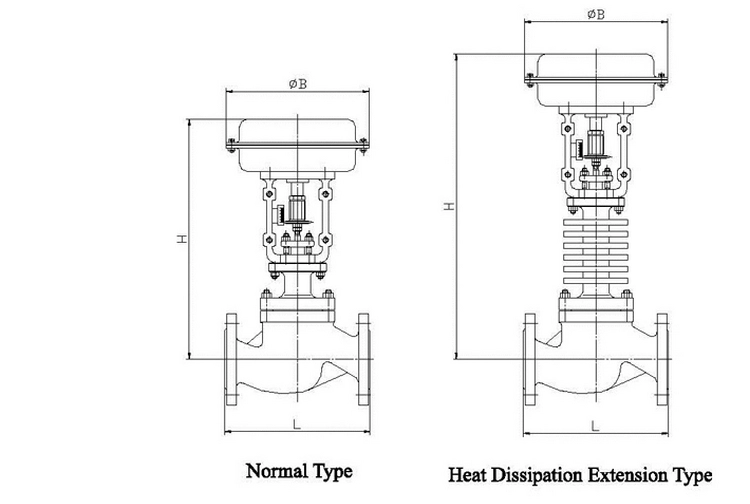

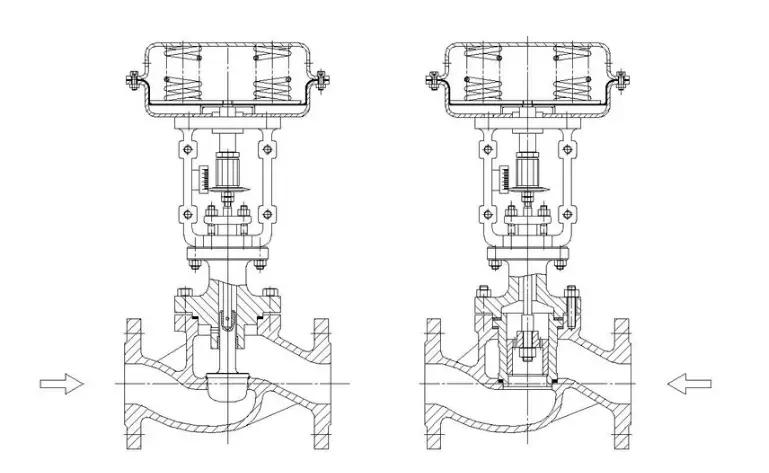

    Noimnal Size L H ∅B
    PN16 PN40 PN64 Normal Heat Dissipation
    DN20 184 194 206 394 509 245
    DN25 184 197 210 396 512 245
    DN32 200 210 210 402 523 245
    DN40 222 235 251 437 589 290
    DN50 254 267 286 451 597 290
    DN65 276 292 311 607 707 362
    DN80 298 317 337 613 718 362
    DN100 352 368 394 631 731 362
    DN125 410 425 440 736 848 454
    DN150 451 473 508 778 887 454
    DN200 600 620 650 796 898 454
    DN250 650 660 670 1063 1172 560
    DN300 740 770 800 1083 1183 560
    DN350 850 950 – 1210 1315 560
    DN400 850 850 – 1130 1235 560




    Inquiry Us
