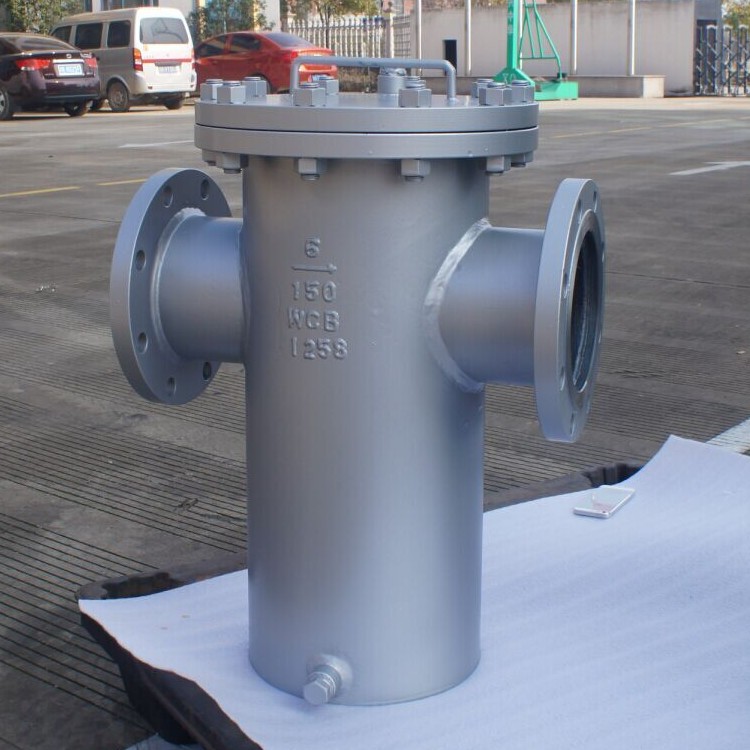

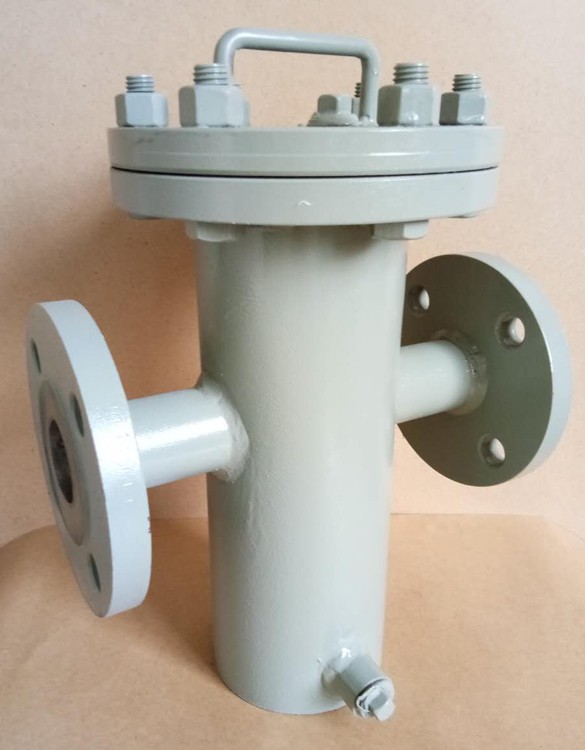

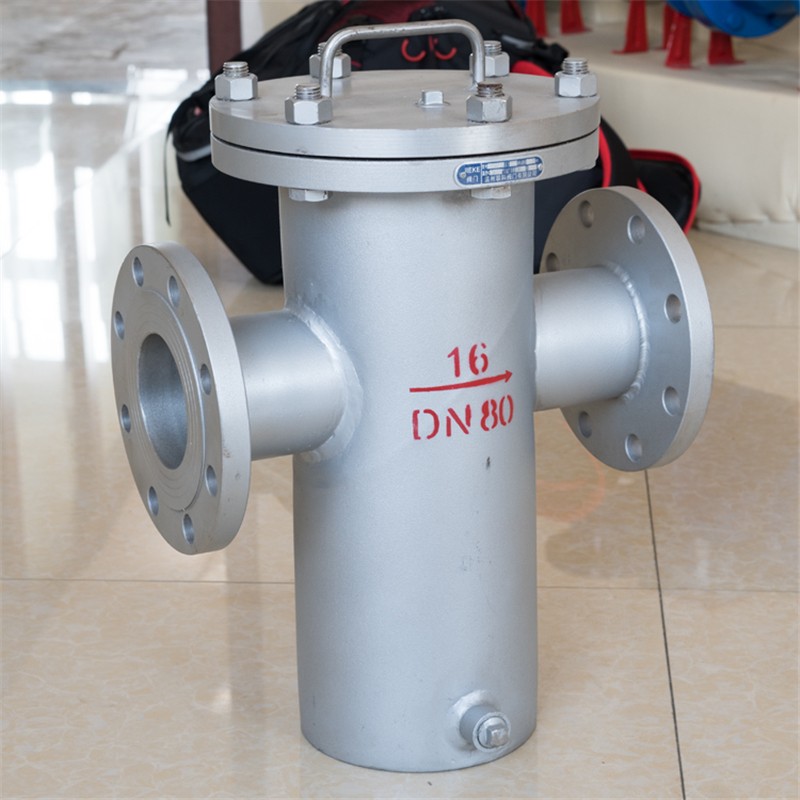

Basket strainer

  • Design and manufacture: ASME B16.34
  • End flange dimension: ASME B16.5 (size under 24", ASME B16.47 (for large basket strainer size above 24")
  • Face to face: ASME B16.10
  • Pressure-temperature ratings: ASME B16.34
  • Class 150 Cast Steel T Basket Oil Strainer - Buy T Basket Strainer , Basket Type Oil Strainer , Basket Type Strainer , Basket strainer
    Inquiry Send Email

    Description

    Basket strainer

    Basket Strainers Supplier, Exporter, Offers Industrial, Flanged, Bw Ends, Carbon steel (CS), Stainless Steel (SS), Duplex Steel (DSS), Iron, Simplex Basket Strainers; Cast, Welded, Fabricated Body Basket Strainers Sizes From 2Inch to 24Inch, Pressure Rating to Ansi Class 150Lbs, 300Lbs, 600Lbs, And Din to Pn10, Pn16, Pn25;

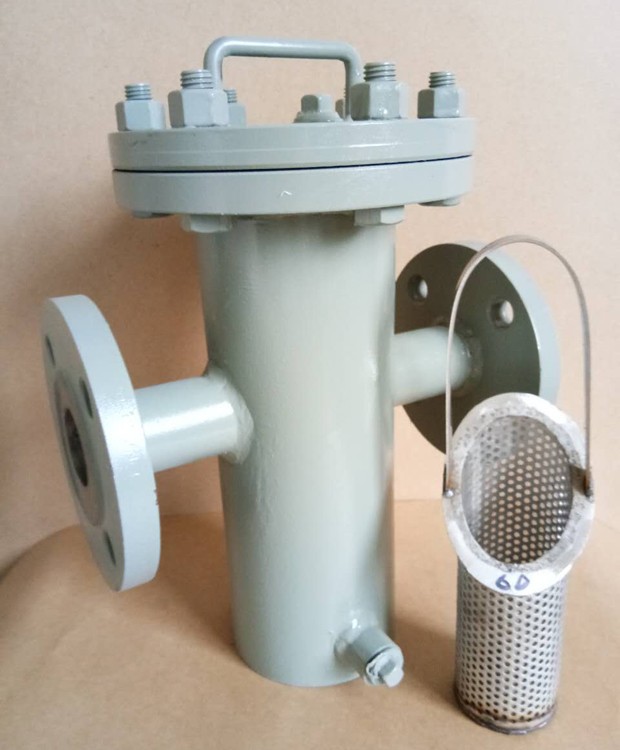

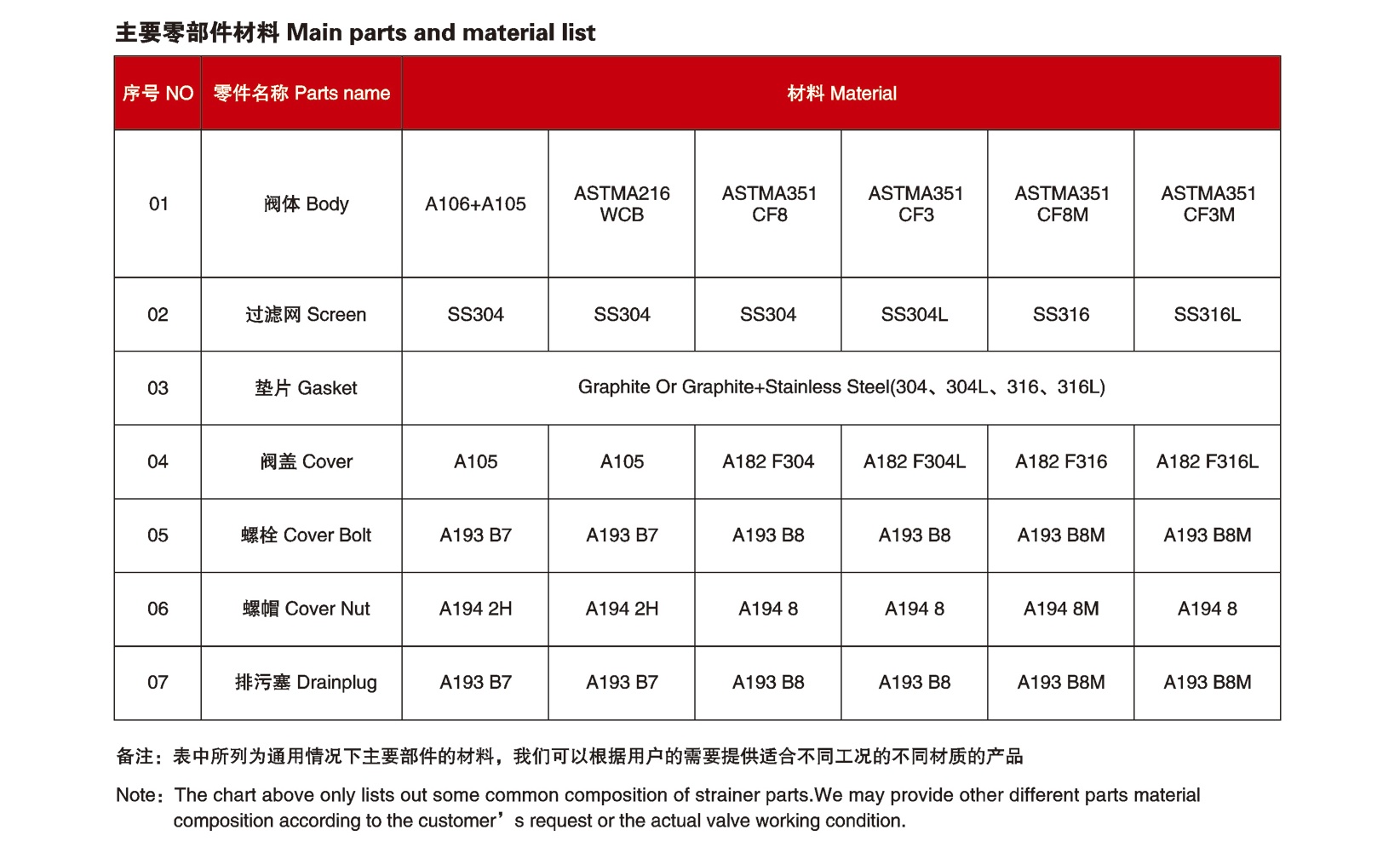

    All BaskeT type strainer Baskets (Screens) and Mesh Materials In a Wide Range: Stainless Steel (304SS, 316SS), Duplex Stainless Steel (DSS, 2205), Monel etc.
    The Perforated Screens & Mesh Hole Size as Required.
    Basket strainer (simplex basket strainer, Duplex Basket Strainer) is a kind of equipment that it remove small impurities from liquid, gases and pipe system with the use of a perforated screen, protect the normal operation to the pump, instruments, and other equipment.

    BASKET STRAINER STANDARDS:

    1. Design and manufacture: ASME B16.34
    2. Inspection and test: API598

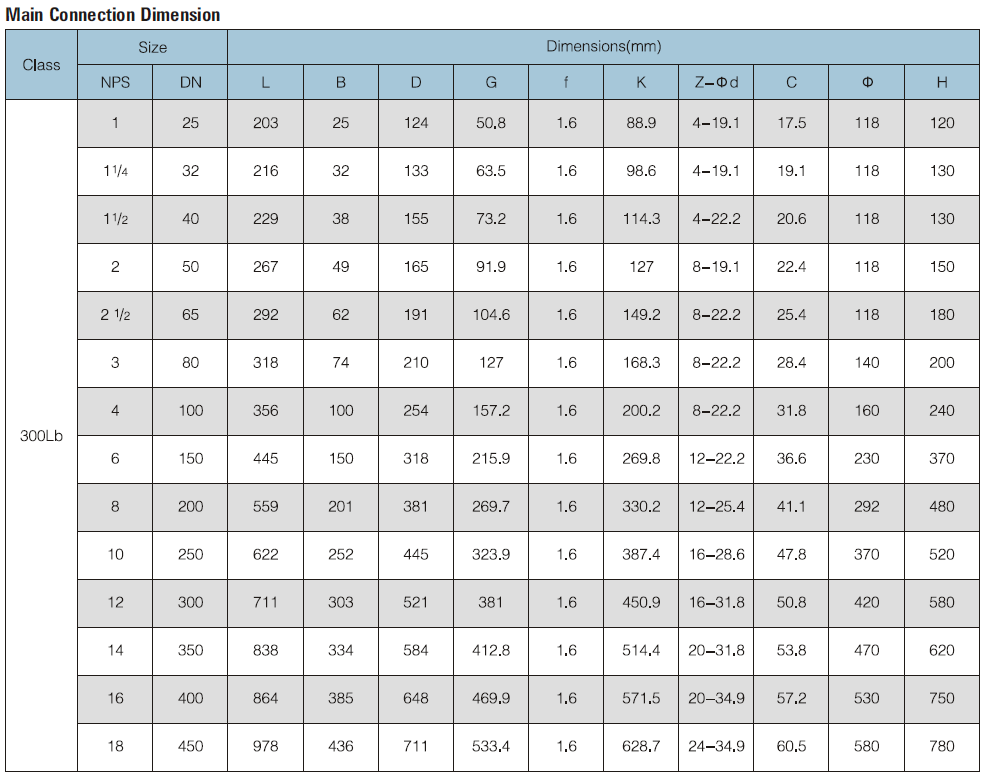

    3. End flange dimension: ASME B16.5 (size under 24", ASME B16.47 (for large basket strainer size above 24")
    4. BW end dimension: ASME B16.25
    5. Face to face: ASME B16.10

    6. Pressure-temperature ratings: ASME B16.34
